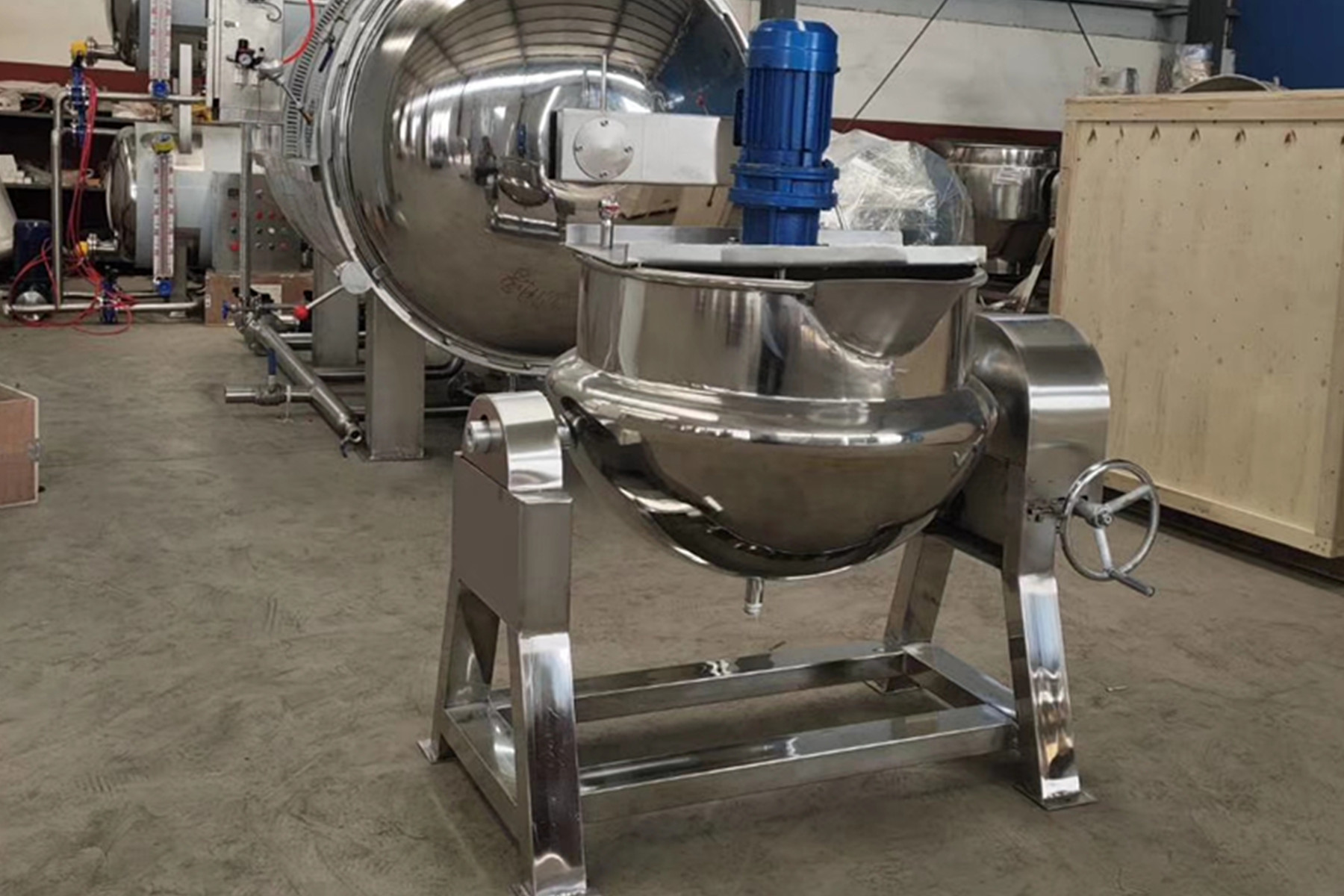

SG100 Shisha Tobacco Mixing Machine (Vertical)

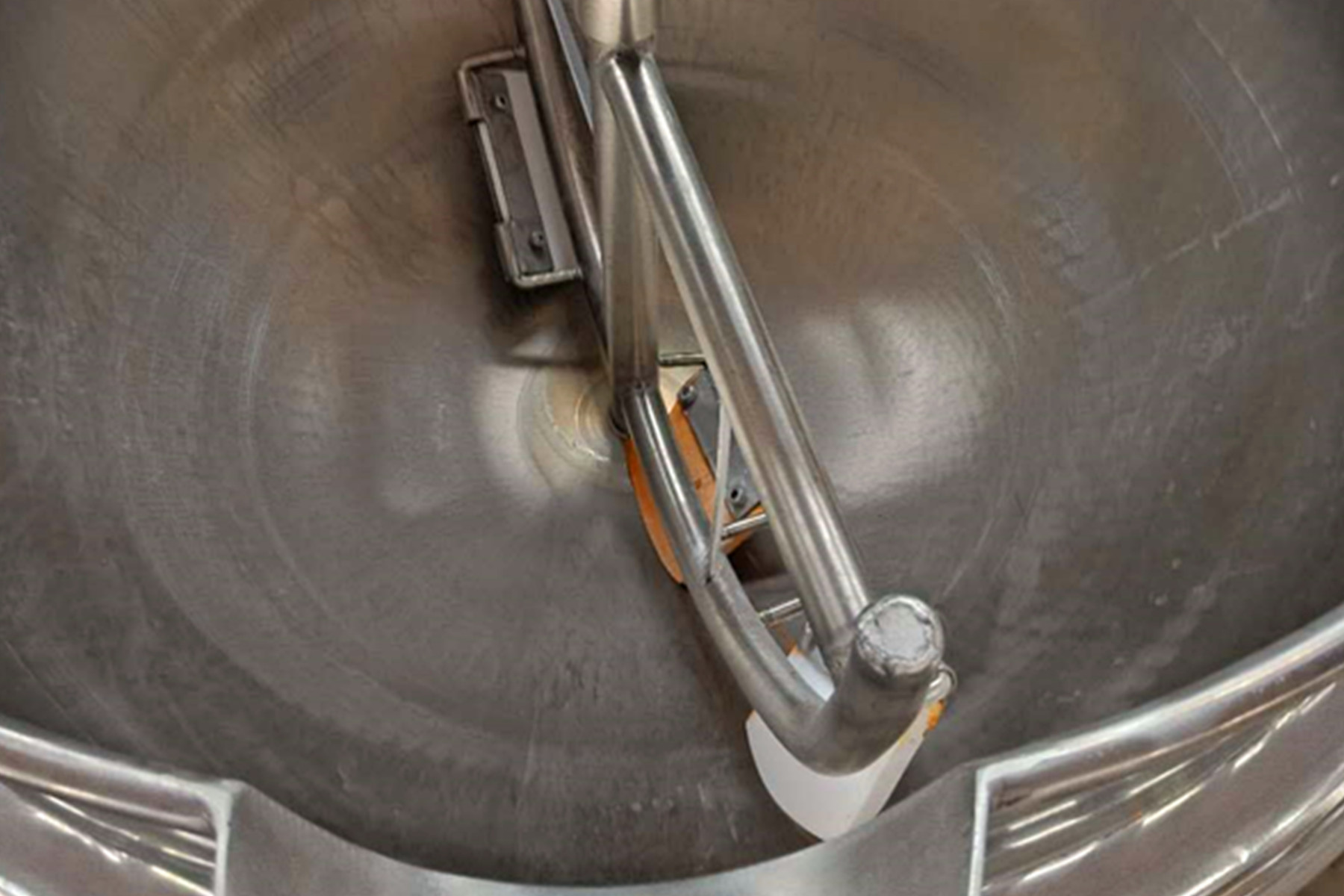

This powerful mixing machine is customized by us for blending molasses tobacco more evenly. In order to agitate the mixture of cut tobacco, glycerin, molasses, flavors, etc., we need a very powerful agitating motor to ensure the mixing quality. And because of that, we use a high-performance motor to blend these stuff to avoid motor break-down. The tobacco-molasses mixture is sticky, which is the reason why we put three shovels on the bottom of the mixing pot to erase sticky molasses to ensure the integrity of the mixture.

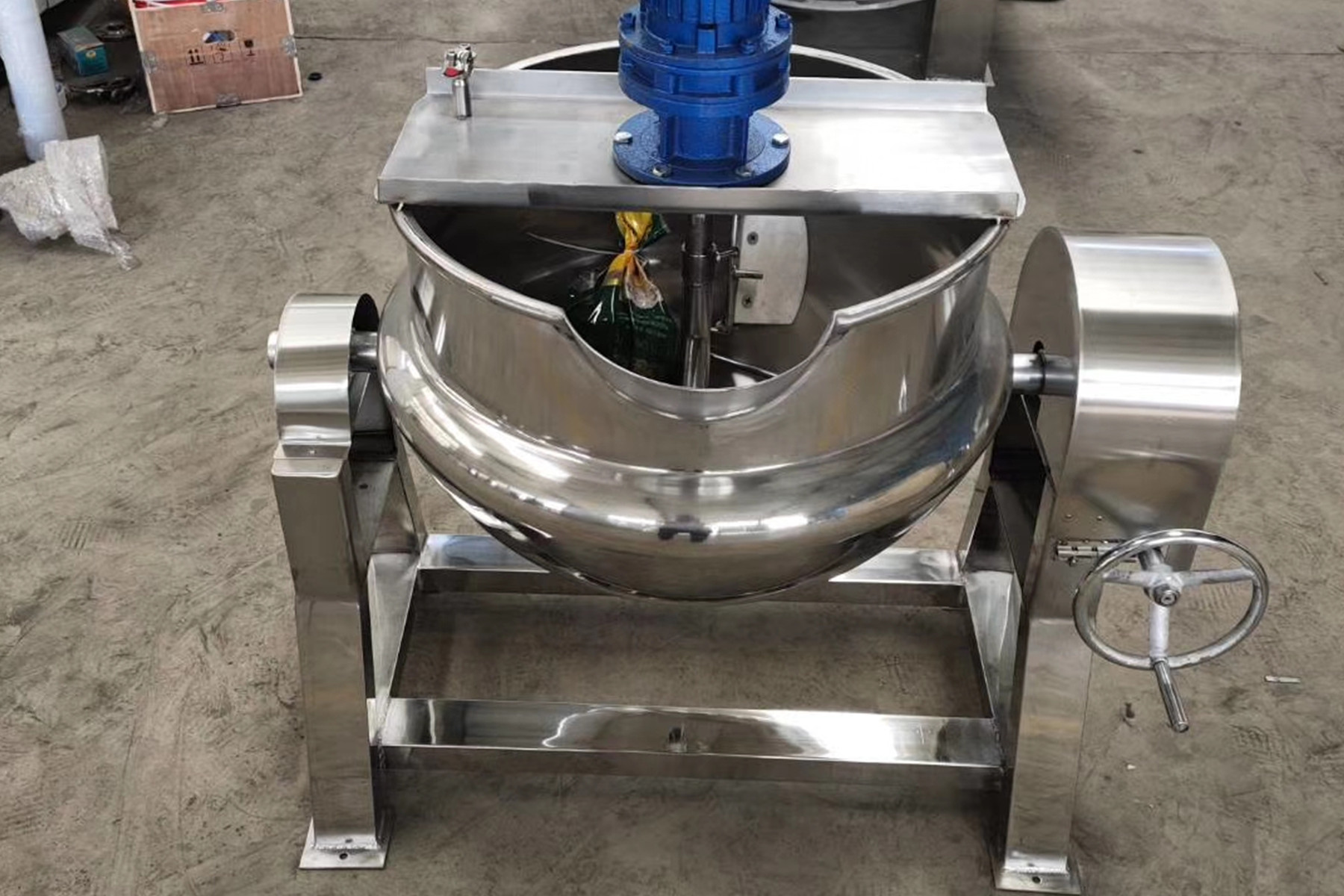

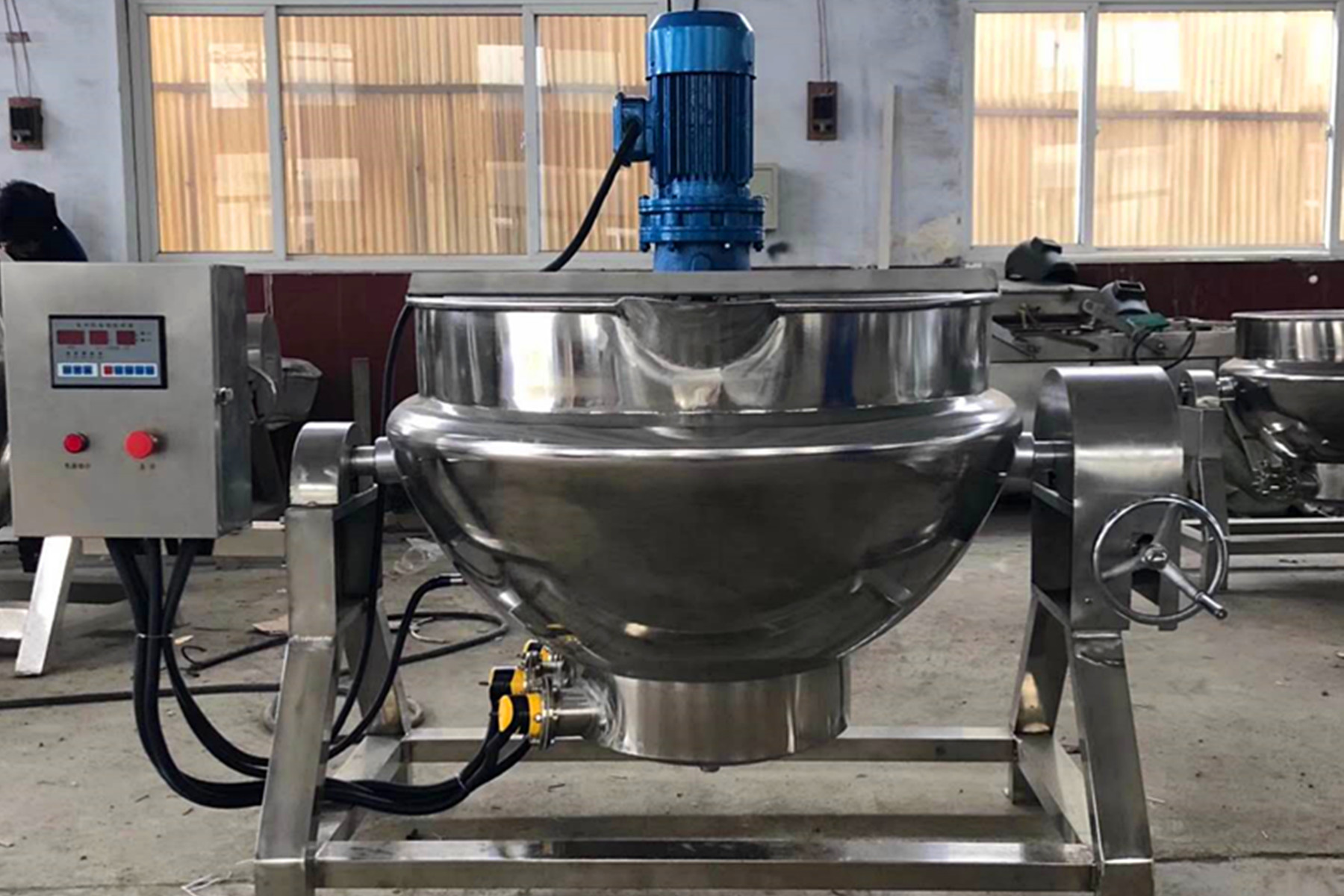

It has hot steam and electric heating sources. Also, it can add the agitator and cover. All depend on clients. This equipment consists of a boiler body, stir device, tilting system, worm wheel, and worm rod and the boiler body can be rotated within 180 degrees. All the materials in contact with media used stainless steel featuring good anticorrosion and durability which are in accordance with GMP standard. If you have special requirements over the mixer, we can absolutely do it as per your requests.
-
The great heating system can save cost and shorten cooking time. The burner system is working highly efficiently.
-
The bowl can be tilted to 90° manually.
-
The mixing arm can be lifted by an electrical operating system.
-
Side scraper material mixing more thoroughly, not paste pot
-
Can choose gas or steam heating. (One heating source only.)
-
Variable mixing speeds for different cooking processes.
-

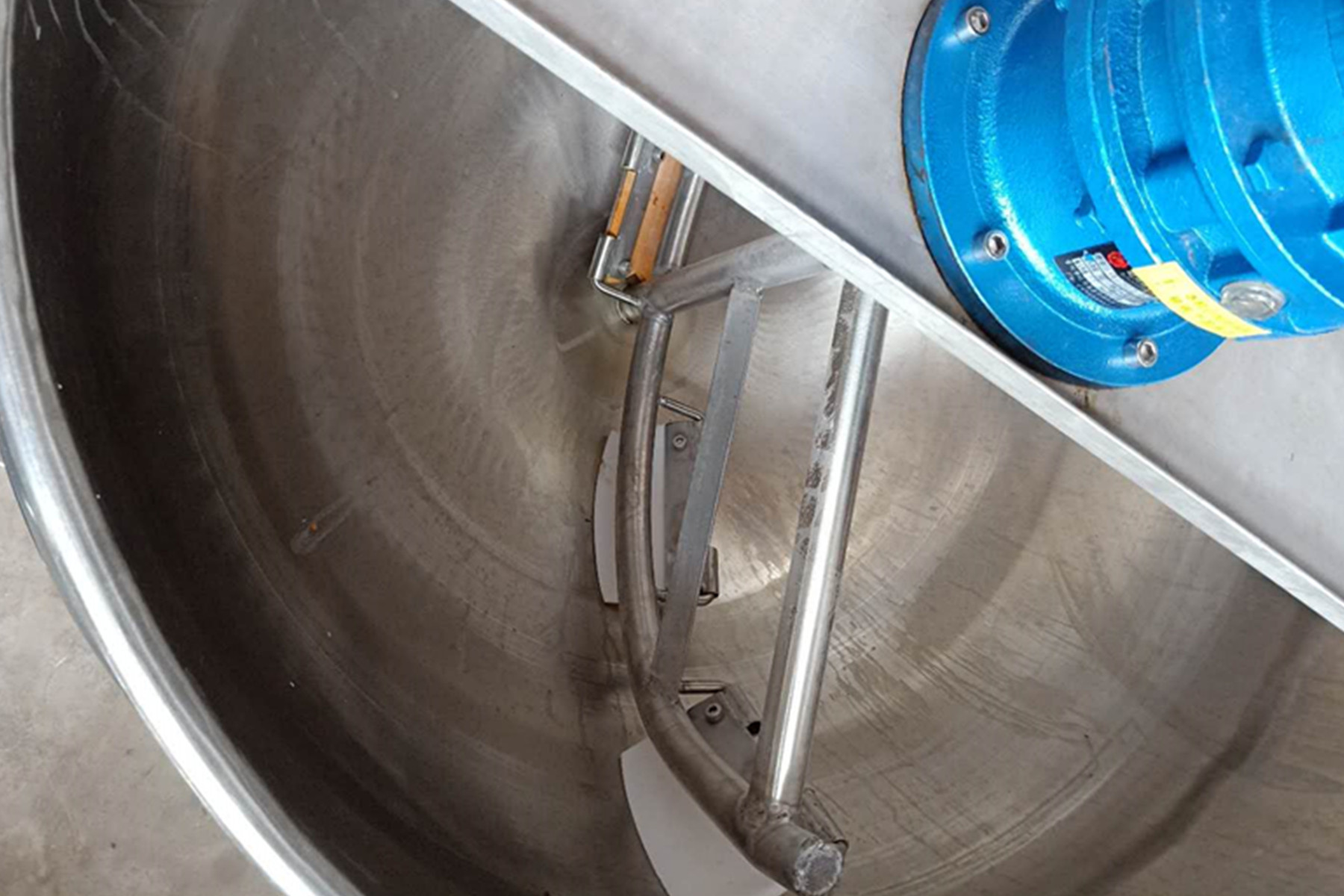

The mixing scrapers touch the bowl thoroughly avoids burning. Planetary mixing way makes no mixing blind angle.
-
Easy clean with SUS#304 Body. Have a long use life.
-
The heating temperature can be set freely, and the heating time frame can also be set as you wish.
Machine Technical Specifications
Machine Model | SG100 | SG200 | SG300 |
---|---|---|---|
Volume | 100L(70KGS) | 200L(150KG) | 300L(220KG) |
Power | 220V/380V, 1.2 KW | 220V/380V, 1.5KW | 220V/380V, 1.8KW |
Temperature | =< 320℃ | =< 320℃ | =< 320℃ |
RPM | 23r/min | 23r/min | 23r/min |
Heating Power | 12kw | 16kw | 20kw |
Machine Size | 900*750*1350(mm) | 1100*900*1450(mm) | 1300*1100*1550(mm) |
Weight | 190kgs | 240kgs | 320kgs |
